Wheels: Forza Skiron CR38 with DT Swiss 350 hub set
Tyres: Vittoria Corsa Pro 30c TLR
Saddle: Selle Italia Boost SLR Manganese
Cockpit: Forza Nimbus Pro 40cm outside to outside, 120mm equivalent stem

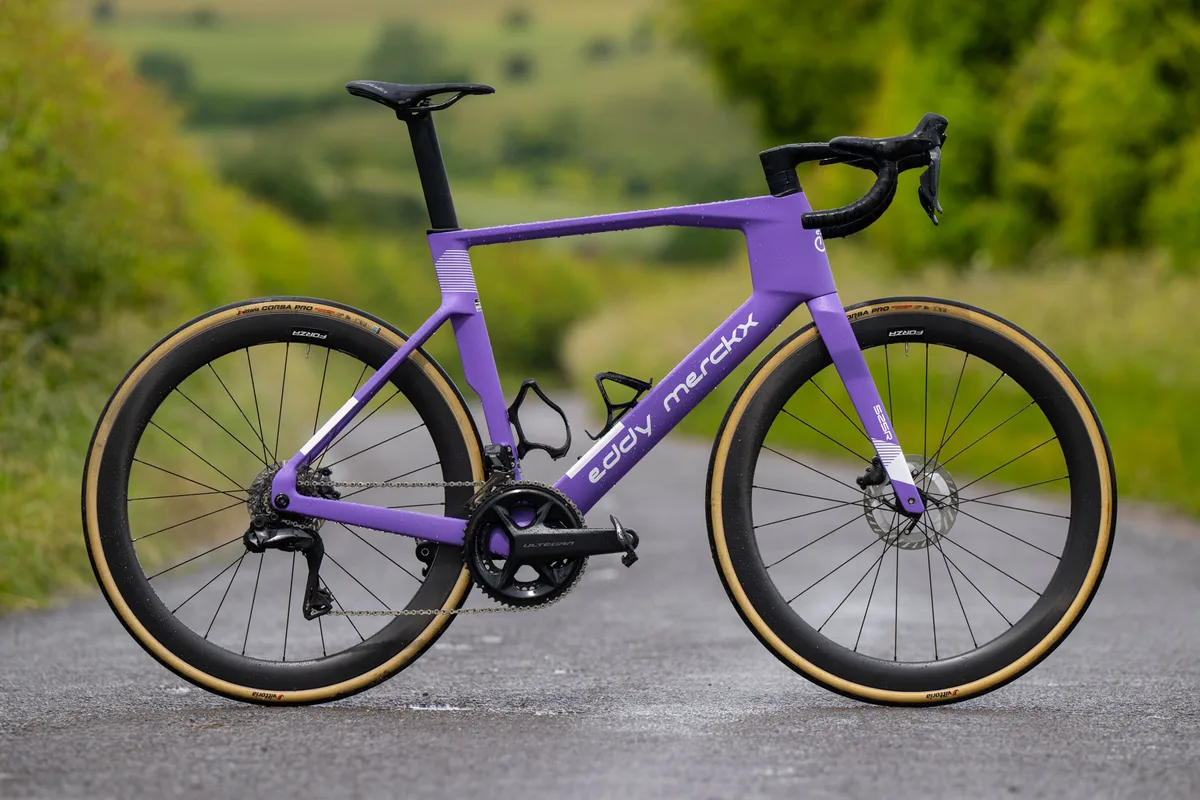

Eddy Merckx 525R geometry
xs
s
m
l
Max saddle height
770
785
805
880
Seat tube
480
495
515
540
Top tube
525
545
565
585
Head tube
125
140
160
185
Seat angle
74.5
75
75
76
Head angle
73
73
73
73
Chainstay
407
407
407
407
BB drop
75
75
75
75
Wheelbase
964
990
1011
1043
Standover
698
713
732
756
Reach
377
398
413
437
Stack
535
550
569
593
standard lineup is completed By:
525R Campagnolo Super Record 2 x 13/Campagnolo Bora 525R Shimano Dura-Ace Di2 2 x 12/DT Swiss ARC1400 525R Shimano Ultegra Di2 2 x 12/Forza Skiron 525R Frameset/Forza Nimbus Pro cockpit
