Rim Material: T700 UD Carbon Fibre

Use: Road, Time Trial (TT); Triathlon (Tri)

Rim Width: 23mm (internal); 30mm (external); Rim Depth: 56mm

Hubs: SR2D, 36T Ratchet System, CNC machined 7075 alloy hub body; Hub Bearings: Front: 2x 15267, Rear: 1x 6902, 1x 17287, Freehub: 2x 6802

Freehub: Anti Bite Guard, Shimano/SRAM 9/10/11 speed

Spokes: Front: PDB1415 JB, 256mm (Disc Side), PDB1415 JB, 258mm (Drive Side); Rear: PDB1415 JB, 252mm (Drive Side), PDB1415 JB, 257mm (Disc Side)

Tubeless ready

Brake Type: Disc Brake; Disc Mount: Centre Lock

Rider Weight Limit: 110kg

• Front 100mm 6-Bolt and Center-Lock
• Front 110mm 6-Bolt and Center-Lock
• Rear 135mm 6-Bolt and Center-Lock
• Rear 148mm 6-Bolt and Center-Lock
• Rear 148mm 6-Bolt E-Specific
• Rear 150mm 6-Bolt
• Rear 157mm 6-Bolt
• Rear Single Speed 6-Bolt

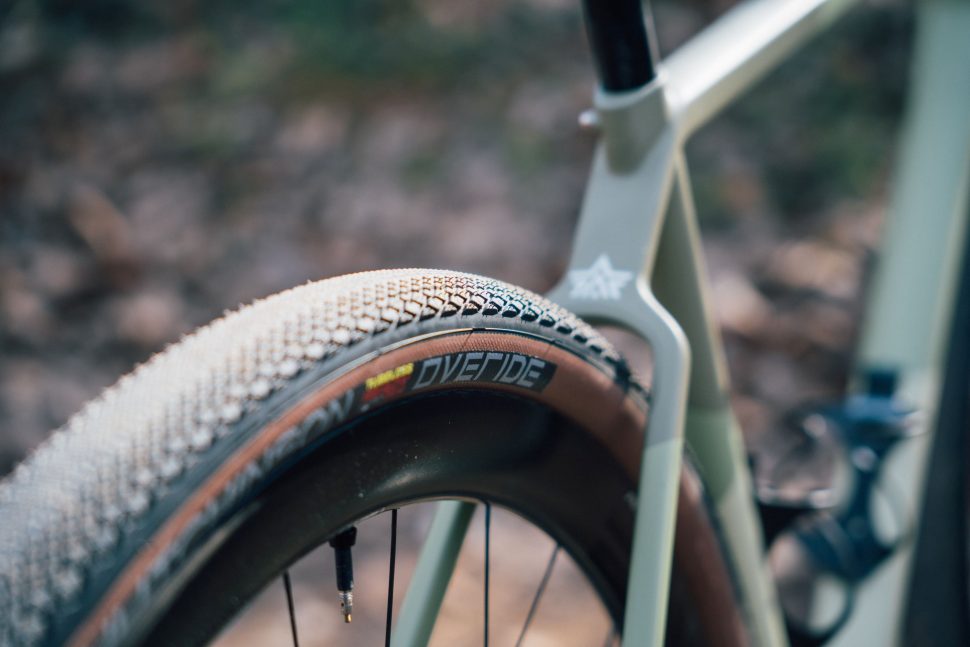

• Dimensions: 700c x 50mm / 29x2in, ETRTO 50-622
• Terrain: Dry, mixed
• Claimed weight: 610g
• Other sizes available: 650b x 47mm, 700c x 35, 38, 40, 45mm

• Dimensions: 700c x 50mm / 29x2in, ETRTO 50-622
• Terrain: Dry, mixed, rocky
• Claimed weight: 640g
• Other sizes available: 650b x 47mm, 700c x 40, 45mm

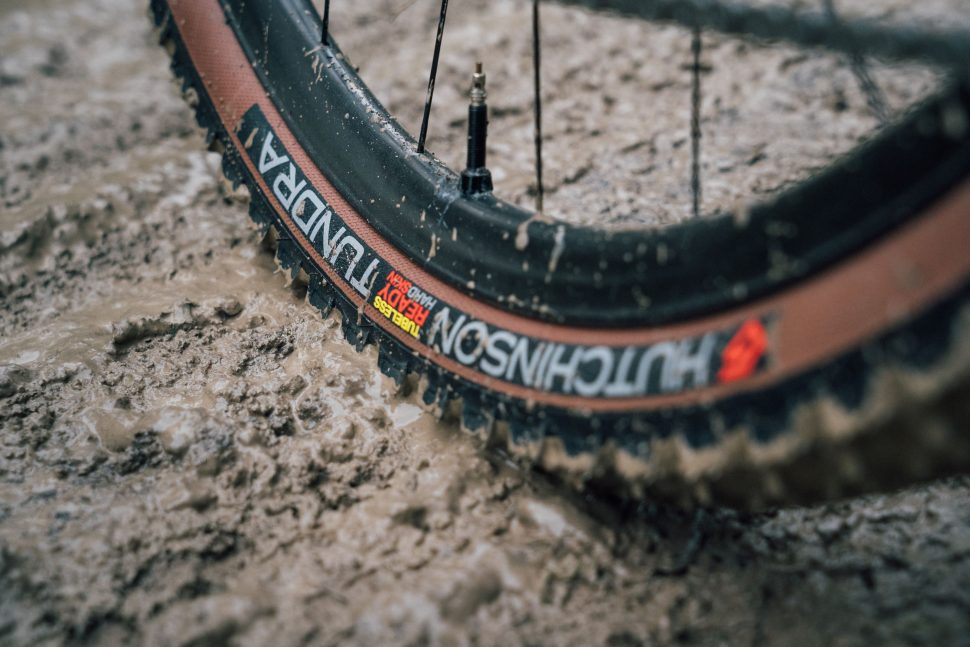

• Dimensions: 700c x 50mm / 29x2in, ETRTO 50-622
• Terrain: Mixed, wet, muddy
• Claimed weight: 680g
• Other sizes available: 700c x 40, 45mm

Weight: 105 grams

Width: 143 mm, 155 mm

Length: 250

Rail to saddle topper: 35 to 45 mm, depending on the position

Max rider's weight: 120 kg. You can secure a saddlebag under 10 kg.

Max torque: 5 N*m

kurk 8 mm

• Length: 18cm
• Stroke: 12.5cm
• Weight: 96g
• Valve types: Presta, Schrader
• Claimed max pressure: 120psi
• Mount included?: Bottle cage

• Length: 24cm
• Stroke: 17cm
• Weight: 102g
• Valve types: Presta, Schrader
• Claimed max pressure: 120psi
• Mount included?: Bottle cage

• Length: 20cm
• Stroke: 12cm
• Weight: 98g
• Valve types: Presta, Schrader
• Claimed max pressure: 100psi
• Mount included?: Bottle cage
