Campagnolo Super Record 13
- There are 7 chainrings and 4 cassettes to choose from.
- The new groupset is the first 2×13 option on the market.
- It uses the existing Campagnolo N3W freewheel and chain.

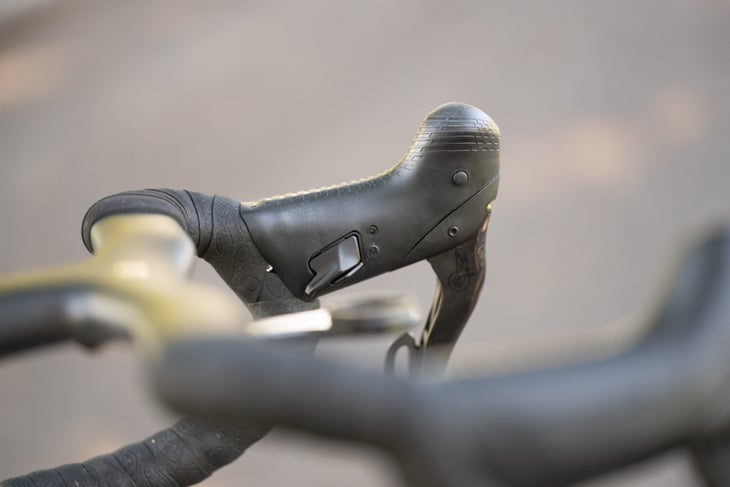

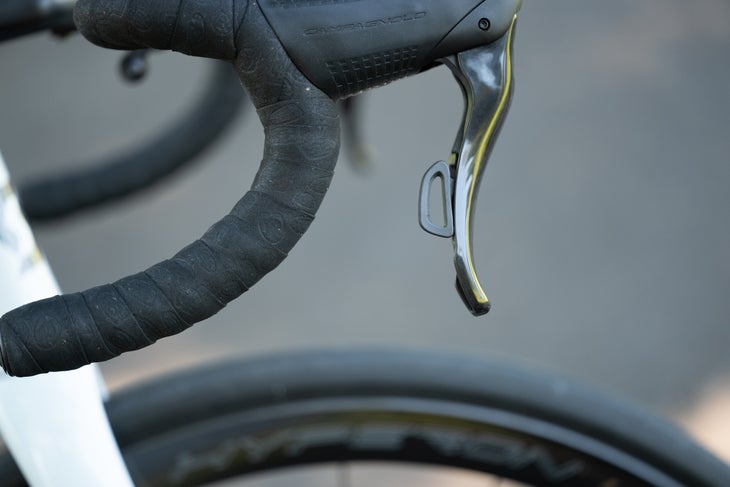

- A thumb lever returns but it’s quite different from past iterations.

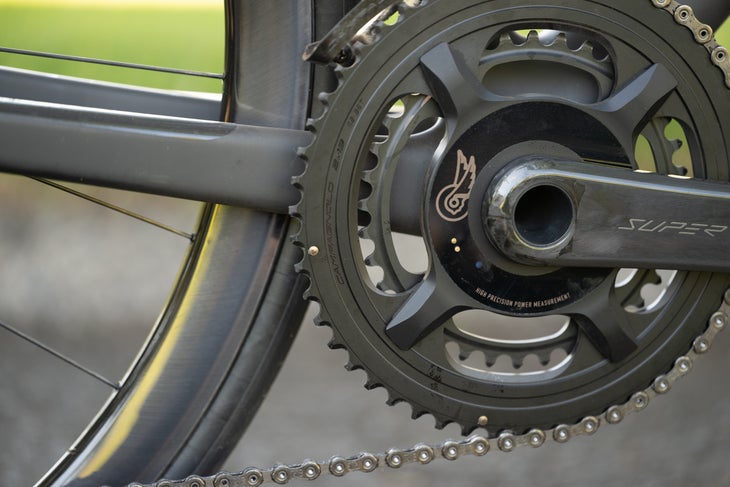

- Campagnolo is meticulous in documenting weight, however component choices make a difference and my review setup is 2560.6 grams with a 52/36 power meter equipped crankset and an 11-36 cassette.
- Batteries are removable but not interchangeable and practical use is closer to Shimano (plug the bike in) than SRAM (remove the battery for charging). Quoted battery life is 750km.
All these options are interchangeable.

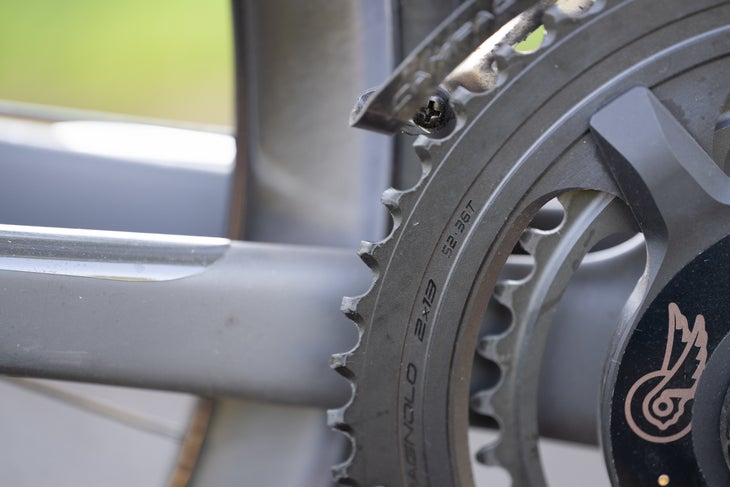

| Chainring options |
55/39 |
54/39 |
53/39 |
52/36 |
50/34 |
48/32 |
45/29 |

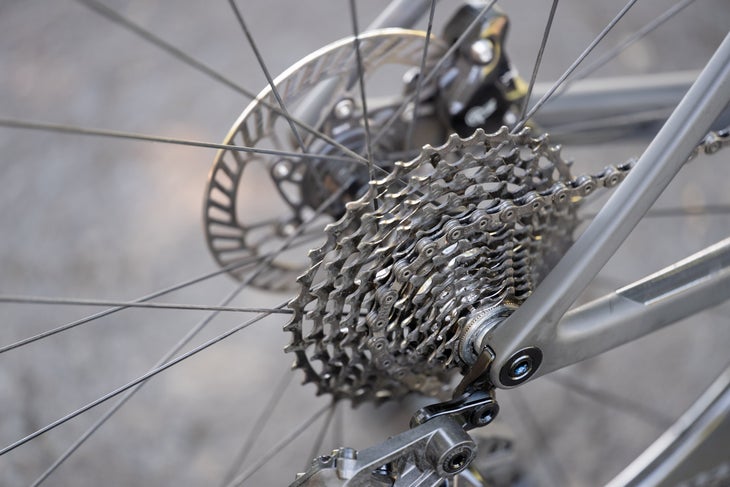

| Cassette options |
10-29 |
10/11/12/13/14/15/16/17/18/20/23/26/29 |
| |
10-33 |
10/11/12/13/14/15/16/18/20/23/26/29/33 |
| |
11-32 |
11/12/13/14/15/16/17/18/20/23/26/29/32 |
| |
11-36 |
11/12/13/14/15/16/18/20/23/26/29/32/36 |
| Cassette Option 1 |
FRONT |
REAR |
MAX |
MIN |
| Sport |
45-29 |
10-29 |
4,50 |
1,00 |
| Sport |
48-32 |
10-29 |
4,80 |
1,10 |
| Performance |
50-34 |
10-29 |
5,00 |
1,17 |
| Performance |
52-36 |
10-29 |
5,20 |
1,24 |
| Performance |
53-39 |
10-29 |
5,30 |
1,34 |
| Performance |
54-39 |
10-29 |
5,40 |
1,34 |
| Performance |
55-39 |
10-29 |
5,50 |
1,34 |
| Cassette Option 2 |
FRONT |
REAR |
MAX |
MIN |
| Sport |
45-29 |
10-33 |
4,50 |
0,88 |
| Sport |
48-32 |
10-33 |
4,80 |
0,97 |
| Sport |
50-34 |
10-33 |
5,00 |
1,03 |
| Performance |
52-36 |
10-33 |
5,20 |
1,09 |
| Performance |
53-39 |
10-33 |
5,30 |
1,18 |
| Performance |
54-39 |
10-33 |
5,40 |
1,18 |
| Performance |
55-39 |
10-33 |
5,50 |
1,18 |
| Cassette Option 3 |
FRONT |
REAR |
MAX |
MIN |
| Endurance |
45-29 |
11-32 |
4,09 |
0,91 |
| Endurance |
48-32 |
11-32 |
4,36 |
1,00 |
| Sport |
50-34 |
11-32 |
4,55 |
1,06 |
| Sport |
52-36 |
11-32 |
4,73 |
1,13 |
| Sport |
53-39 |
11-32 |
4,82 |
1,22 |
| Sport |
54-39 |
11-32 |
4,91 |
1,22 |
| Sport |
55-39 |
11-32 |
5 |
1,22 |
| Cassette Option 4 |
FRONT |
REAR |
MAX |
MIN |
| Endurance |
45-29 |
11-36 |
4,09 |
0,81 |
| Endurance |
48-32 |
11-36 |
4,36 |
0,89 |
| Sport |
50-34 |
11-36 |
4,55 |
0,94 |
| Sport |
52-36 |
11-36 |
4,73 |
1 |
| Sport |
53-39 |
11-36 |
4,82 |
1,08 |
| Sport |
54-39 |
11-36 |
4,91 |
1,08 |
| Sport |
55-39 |
11-36 |
5 |
1,08 |
|
